Introduction

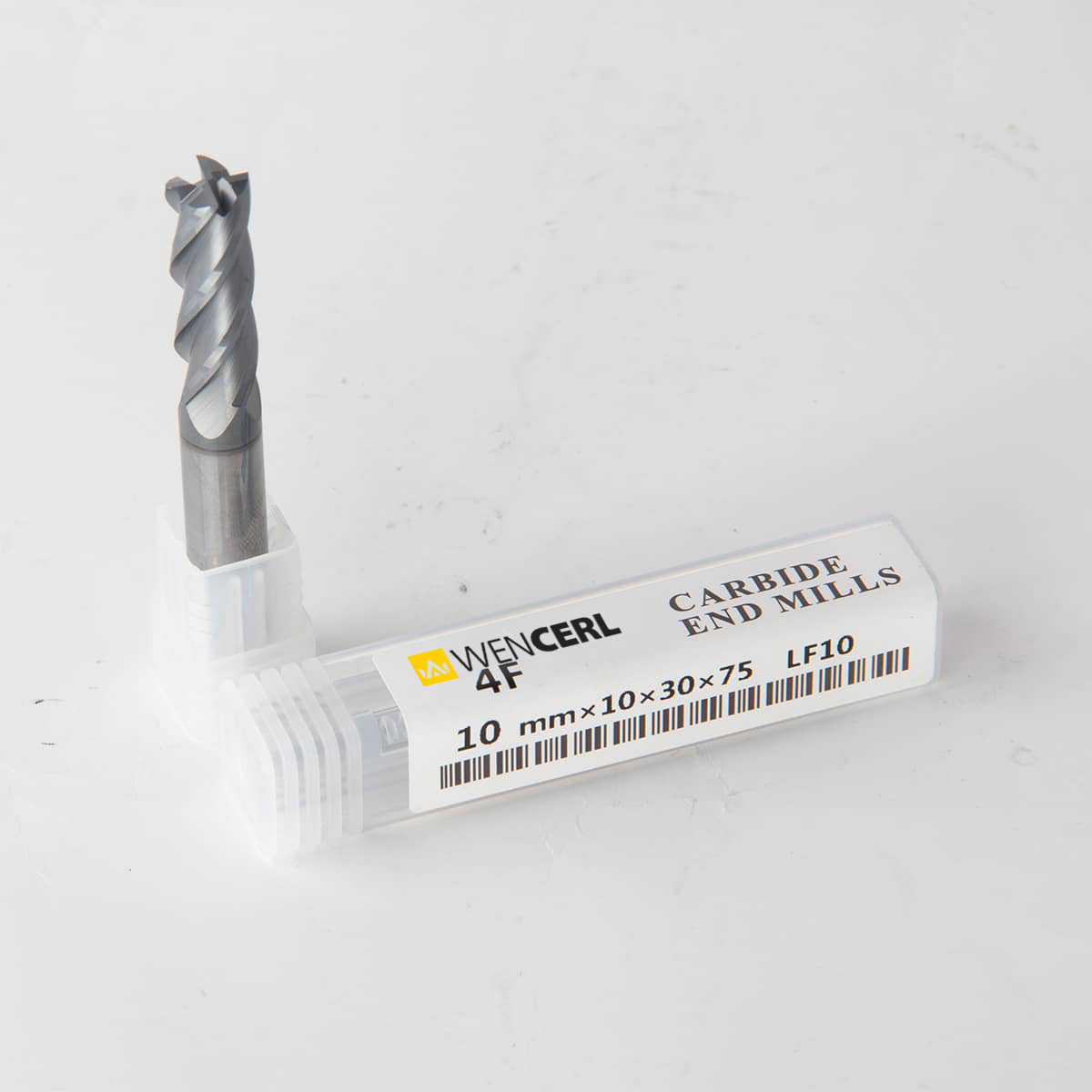

In the fast-paced world of machining, the quest for greater efficiency and longevity of cutting tools is constant. One significant advancement that has revolutionized tool performance is the development of coatings for end mills. Among these, Titanium Aluminum Nitride (TiAlN) stands out as one of the most popular and effective coatings. TiAlN coated end mills not only extend tool life but also significantly enhance performance, especially in demanding applications. This article will delve into the benefits of TiAlN coated end mills and how they can optimize your machining processes.
What Is TiAlN Coating?
TiAlN, or Titanium Aluminum Nitride, is a hard coating that is applied to cutting tools like end mills to improve their performance and durability. The coating is created through a process called Physical Vapor Deposition (PVD), where a thin film of TiAlN is deposited onto the tool’s surface. This coating is known for its high hardness, thermal stability, and oxidation resistance, making it ideal for challenging machining environments.
Key Characteristics of TiAlN Coating:
- High Hardness: TiAlN coating has a hardness level that significantly increases the wear resistance of the tool.
- Thermal Stability: Can withstand temperatures up to 800°C (1472°F), making it suitable for high-speed machining.
- Oxidation Resistance: The aluminum content in the coating forms a protective aluminum oxide layer at high temperatures, further enhancing tool life.
Benefits of TiAlN Coated End Mills
TiAlN coated end mills offer several advantages over uncoated or differently coated tools, particularly in terms of tool life and performance:
- Extended Tool Life
- The primary benefit of TiAlN coating is its ability to dramatically extend the life of an end mill. The coating’s hardness and wear resistance reduce the rate at which the tool wears down, allowing it to maintain its cutting edge for longer periods.
- Increased Cutting Speeds
- TiAlN’s thermal stability allows for higher cutting speeds and feeds. As the tool remains cooler and more resistant to wear, machinists can push their equipment harder without compromising the tool’s integrity.
- Improved Performance in High-Temperature Applications
- The oxidation resistance provided by the TiAlN coating is particularly beneficial in high-temperature applications, such as dry machining or machining hard materials like stainless steel, titanium alloys, and nickel-based superalloys.
- Reduced Need for Coolant
- Because TiAlN coated end mills can operate effectively at higher temperatures, they often require less coolant, leading to cost savings and reduced environmental impact.
- Enhanced Surface Finish
- The superior hardness and reduced friction of TiAlN coated tools result in a smoother cutting action, which can lead to better surface finishes on the machined part.
Applications of TiAlN Coated End Mills
TiAlN coated end mills are versatile and can be used across a wide range of applications, particularly where high performance and long tool life are essential:
- Hard Material Machining: Ideal for machining hard steels, titanium alloys, and nickel-based superalloys.
- High-Speed Machining: Suitable for high-speed and high-feed operations, especially in dry machining environments.
- Aerospace and Automotive Manufacturing: Frequently used in industries where the machining of difficult materials at high precision is required.
- Mold and Die Making: Offers excellent performance in creating molds and dies that demand tight tolerances and smooth finishes.
Maximizing the Benefits of TiAlN Coated End Mills
To fully leverage the advantages of TiAlN coated end mills, consider the following best practices:
- Proper Tool Selection
- Choose the right tool geometry and size for your specific application. Consider factors like material hardness, cutting speed, and desired surface finish when selecting the tool.
- Optimize Cutting Parameters
- Adjust your cutting speeds, feeds, and depth of cut to match the capabilities of the TiAlN coating. Higher speeds are typically possible, but be sure to monitor the tool and workpiece temperature to avoid thermal damage.
- Minimize Tool Runout
- Ensure that your toolholder is properly aligned and that there is minimal runout. Excessive runout can lead to uneven wear and reduce the effectiveness of the TiAlN coating.
- Use Dry Machining When Possible
- Take advantage of TiAlN’s high thermal stability by reducing or eliminating coolant when machining, especially in applications where coolant could interfere with the process.
Conclusion
TiAlN coated end mills represent a significant advancement in cutting tool technology. By enhancing tool life, increasing cutting speeds, and improving performance in high-temperature applications, these coated tools offer significant benefits for a wide range of machining operations. Whether you’re working with hard materials, aiming for higher productivity, or simply looking to reduce tooling costs, TiAlN coated end mills can help you achieve your goals with greater efficiency and precision.
