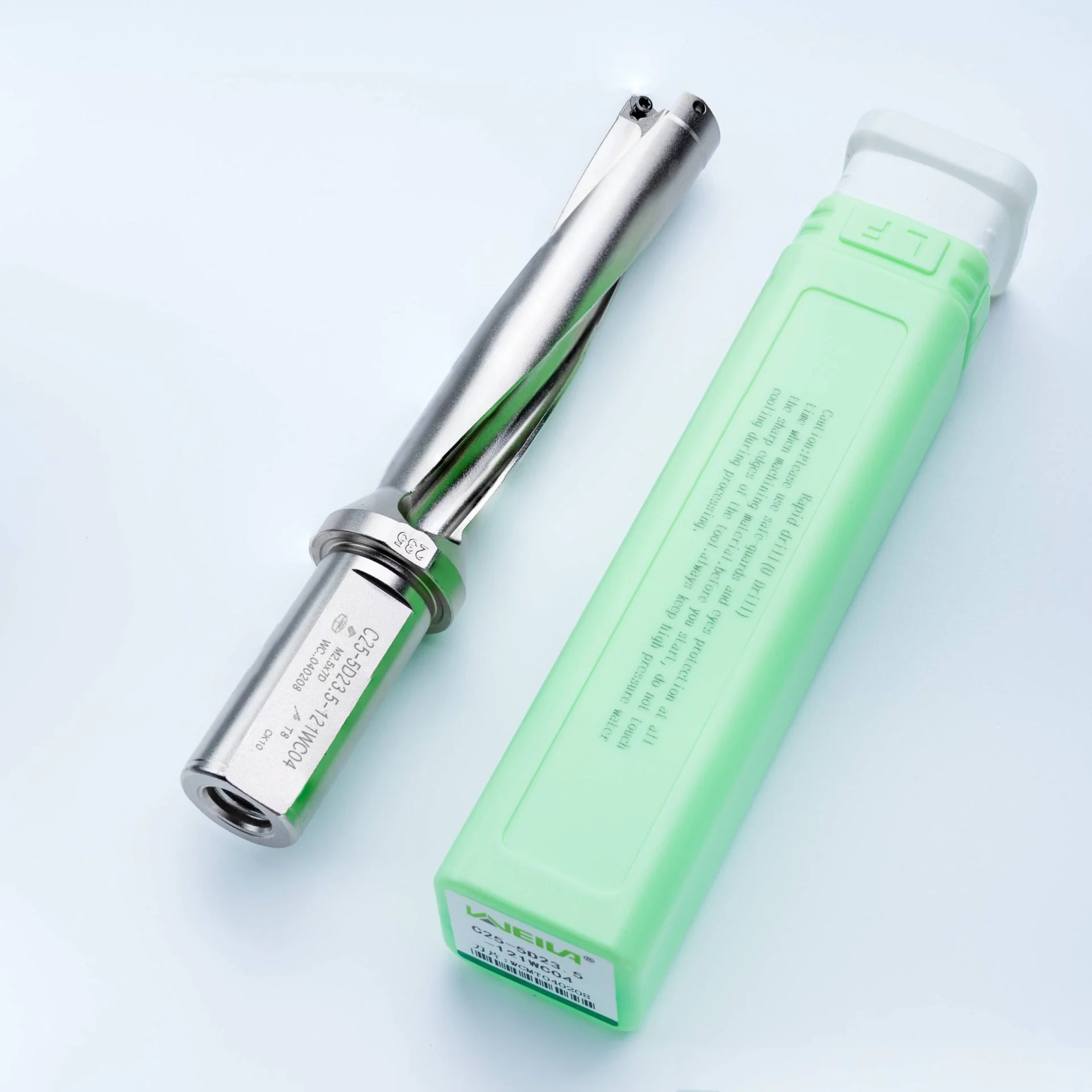

(Drilling depth):5xD
| Specification and model | D | d | L1 | Ls | L | Insert model | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|
| C20-5D14-73WC03 | 14 | 73 | 143 | WC__030208 | M2.5×5 | T8 | ||
| C20-5D14.5-76WC03 | 14.5 | 76 | 145 | |||||
| C20-5D15-78WC03 | 15 | 20 | 78 | 50 | 147 | |||
| C20-5D15.5-81WC03 | 15.5 | 81 | ||||||
| C20-5D16-83WC03 | 16 | 83 | ||||||
| C20-5D16.5-86WC03 | 16.5 | 86 | ||||||
| C20-5D17-88WC03 | 17 | 88 | ||||||
| C20-5D17.5-91WC03 | 17.5 | 20 | 91 | 50 | 158 | WC__030208 | M2.5×6 | T8 |
| C20-5D18-93WC03 | 18 | 93 | ||||||
| C20-5D18.5-96WC03 | 18.5 | 96 | ||||||
| C20-5D19-98WC03 | 19 | 98 | ||||||
| C20-5D19.5-101WC03 | 19.5 | 101 | ||||||
| C20-5D20-103WC03 | 20 | 103 | ||||||
| C20-5D20.5-106WC03 | 20.5 | 106 | ||||||
| C20-5D21-108WC04 | 21 | 20 | 108 | 50 | 171 | WC__040208 | M2.5x7D | T8 |
| C20-5D21.5-111WC04 | 21.5 | 111 | ||||||
| C20-5D22-113WC04 | 22 | 113 | ||||||
| C20-5D22.5-116WC04 | 22.5 | 116 | ||||||
| C20-5D23-118WC04 | 23 | 118 | ||||||
| C20-5D23.5-121WC04 | 23.5 | 121 | ||||||
| C20-5D24-123WC04 | 24 | 123 | ||||||
| C20-5D24.5-126WC04 | 24.5 | 126 | ||||||
| C20-5D25-128WC05 | 25 | 128 | WC__050308 | M3x8 | T10 |
| Specification and model | D | d | L1 | Ls | L | Insert model | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|
| C25-5D14-73WC03 | 14 | 73 | 150 | WC__030208 | M2.5×5 | T8 | ||
| C25-5D14.5-76WC03 | 14.5 | 76 | 153 | |||||
| C25-5D15-78WC03 | 15 | 25 | 78 | 56 | 155 | |||
| C25-5D15.5-81WC03 | 15.5 | 81 | ||||||
| C25-5D16-83WC03 | 16 | 83 | ||||||
| C25-5D16.5-86WC03 | 16.5 | 86 | ||||||
| C25-5D17-88WC03 | 17 | 88 | ||||||
| C25-5D17.5-91WC03 | 17.5 | 25 | 91 | 56 | 167 | WC__030208 | M2.5×6 | T8 |
| C25-5D18-93WC03 | 18 | 93 | ||||||
| C25-5D18.5-96WC03 | 18.5 | 96 | ||||||
| C25-5D19-98WC03 | 19 | 98 | ||||||
| C25-5D19.5-101WC03 | 19.5 | 101 | ||||||
| C25-5D20-103WC03 | 20 | 103 | ||||||
| C25-5D20.5-106WC03 | 20.5 | 106 | ||||||
| C25-5D21-108WC04 | 21 | 25 | 108 | 56 | 181 | WC__040208 | M2.5x7D | T8 |
| C25-5D21.5-111WC04 | 21.5 | 111 | ||||||
| C25-5D22-113WC04 | 22 | 113 | ||||||
| C25-5D22.5-116WC04 | 22.5 | 116 | ||||||
| C25-5D23-118WC04 | 23 | 118 | ||||||
| C25-5D23.5-121WC04 | 23.5 | 121 | ||||||
| C25-5D24-123WC04 | 24 | 123 | ||||||
| C25-5D24.5-126WC04 | 24.5 | 126 | ||||||
| C25-5D25-128WC05 | 25 | 128 | WC__050308 | M3x8 | T10 | |||
| C32-5D25.5-131WC05 | 25.5 | 32 | 131 | 60 | 214 | |||
| C32-5D26-133WC05 | 26 | 133 | 215 | |||||
| C32-5D26.5-136WC05 | 26.5 | 136 | 218 | |||||
| C32-5D27-138WC05 | 27 | 138 | 219 | |||||
| C32-5D27.5-141WC05 | 27.5 | 141 | 222 | |||||
| C32-5D28-143WC05 | 28 | 143 | 224 | |||||
| C32-5D28.5-146WC05 | 28.5 | 146 | 226 | |||||
| C32-5D29-149WC05 | 29 | 149 | 229 | |||||
| C32-5D29.5-151WC05 | 29.5 | 151 | 231 | |||||
| C32-5D30-154WC05 | 30 | 154 | 233 | |||||
| C32-5D30.5-157WC05 | 30.5 | 157 | 236 | |||||
| C32-5D31-159WC06 | 31 | 32 | 159 | 60 | 243 | WC__06T308 | M3.5×9 | T15 |
| C32-5D31.5-162WC06 | 31.5 | 162 | 246 | |||||
| C32-5D32-164WC06 | 32 | 164 | 247 | |||||
| C32-5D32.5-167WC06 | 32.5 | 167 | 249 | |||||
| C32-5D33-169WC06 | 33 | 169 | 251 | |||||
| C32-5D33.5-172WC06 | 33.5 | 172 | 253 | |||||
| C32-5D34-174WC06 | 34 | 174 | 258 |
| Specification and model | D | d | L1 | Ls | L | Insert model | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|
| C32-5D34.5-177WC06 | 34.5 | 32 | 177 | 60 | 260 | WC__06T308 | M3.5×9 | T15 |
| C32-5D35-179WC06 | 35 | 179 | 262 | |||||
| C32-5D35.5-182WC06 | 35.5 | 182 | 264 | |||||
| C32-5D36-184WC06 | 36 | 184 | ||||||
| C32-5D36.5-187WC06 | 36.5 | 187 | ||||||
| C32-5D37-190WC06 | 37 | 190 | ||||||
| C32-5D37.5-193WC06 | 37.5 | 193 | ||||||
| C32-5D38-195WC06 | 38 | 195 | 278 | |||||
| C32-5D38.5-198WC06 | 38.5 | 198 | ||||||
| C32-5D39-200WC06 | 39 | 200 | ||||||
| C32-5D39.5-203WC06 | 39.5 | 203 | ||||||
| C40-5D40-205WC06 | 40 | 40 | 205 | 70 | ||||
| C40-5D41-210WC06 | 41 | 210 | ||||||
| C40-5D42-220WC08 | 42 | 220 | WC__080412 | M4x10 | T15 | |||
| C40-5D43-225WC08 | 43 | 225 | 316 | |||||
| C40-5D44-230WC08 | 44 | 230 | ||||||
| C40-5D45-235WC08 | 45 | 235 | ||||||
| C40-5D46-240WC08 | 46 | 240 | ||||||
| C40-5D47-245WC08 | 47 | 245 | ||||||
| C40-5D48-250WC08 | 48 | 250 | ||||||
| C40-5D49-255WC08 | 49 | 255 | ||||||
| C40-5D50-260WC08 | 50 | 40 | 260 | 70 | ||||
| C40-5D51-265WC08 | 51 | 265 | ||||||
| C40-5D52-270WC08 | 52 | 270 | 361 | |||||
| C40-5D53-275WC08 | 53 | 275 | 366 | |||||
| C40-5D54-280WC08 | 54 | 280 | 371 | |||||
| C40-5D55-285WC08 | 55 | 285 | 376 | |||||
| C40-5D56-290WC08 | 56 | 290 | 388 | |||||
| C40-5D57-295WC08 | 57 | 295 | 393 | |||||
| C40-5D58-300WC08 | 58 | 300 | 398 | |||||
| C40-5D59-305WC08 | 59 | 305 | 403 | |||||
| C40-5D55-285WC06 | 55 | 285 | 376 | |||||
| C40-5D56-290WC06 | 56 | 290 | 388 | |||||
| C40-5D57-295WC06 | 57 | 295 | 393 | |||||
| C40-5D58-300WC06 | 58 | 300 | 398 | |||||
| C40-5D59-305WC06 | 59 | 305 | 403 | |||||
| C40-5D60-310WC06 | 60 | 310 | 408 | WC__06T308 | M3.5×9 | |||
| C40-5D61-315WC06 | 61 | 315 | 415 | |||||
| C40-5D62-320WC06 | 62 | 320 | 420 | |||||
| C40-5D63-325WC06 | 63 | 325 | 425 | |||||
| C40-5D64-330WC06 | 64 | 330 | 430 | |||||
| C40-5D65-335WC06 | 65 | 335 | 435 | |||||
| C40-5D66-340WC06 | 66 | 340 | 440 | |||||
| C40-5D67-345WC06 | 67 | 345 | 445 | |||||
| C40-5D68-350WC06 | 68 | 350 | 450 | |||||
| C40-5D69-355WC06 | 69 | 355 | 455 | |||||
| C40-5D70-360WC06 | 70 | 360 | 460 | |||||
| C40-5D71-365WC06 | 71 | 365 | 465 | |||||
| C40-5D72-370WC06 | 72 | 370 | 470 | |||||
| C40-5D73-375WC06 | 73 | 375 | 475 | |||||
| C40-5D74-380WC06 | 74 | 380 | 480 | |||||
| C40-5D75-385WC06 | 75 | 385 | 485 | |||||
| C40-5D76-390WC06 | 76 | 390 | 490 | |||||
| C40-5D77-395WC06 | 77 | 395 | 495 | |||||
| C40-5D78-400WC06 | 78 | 400 | 500 | |||||
| C40-5D79-405WC06 | 79 | 405 | 505 | |||||
| C40-5D80-410WC06 | 80 | 410 | 510 |
