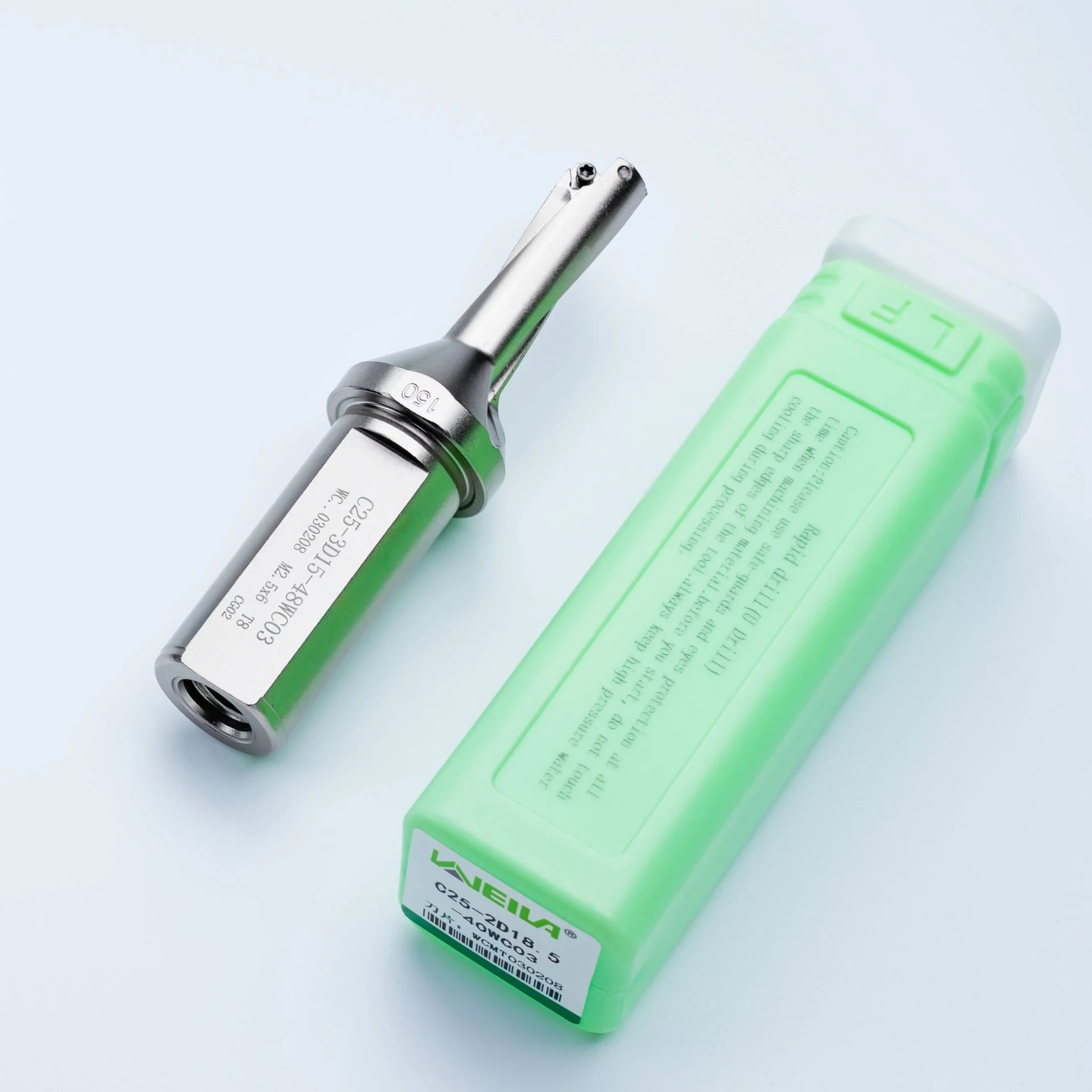

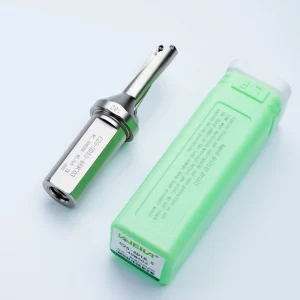

WC type U-drill 3D

(Drilling depth):3xD

Material

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C20-3D14-45WC03	14	20	45	50	115	WC__030208	M2.5×5	T8
C20-3D14.5-47WC03	14.5		47		116
C20-3D15-48WC03	15		48		117
C20-3D15.5-50WC03	15.5		50		118
C20-3D16-51WC03	16		51		119
C20-3D16.5-53WC03	16.5		53		120
C20-3D17-54WC03	17		54		121
C20-3D17.5-56WC03	17.5	20	56	50	123	WC__030208	M2.5×6	T8
C20-3D18-57WC03	18		57		123
C20-3D18.5-59WC03	18.5		59		125
C20-3D19-60WC03	19		60		125
C20-3D19.5-62WC03	19.5		62		127
C20-3D20-63WC03	20		63		127
C20-3D20.5-65WC03	20.5		65		129
C20-3D21-66WC04	21	20	66	50	130	WC__040208	M2.5x7D	T8
C20-3D21.5-68WC04	21.5		68		131
C20-3D22-69WC04	22		69		133
C20-3D22.5-71WC04	22.5		71		138
C20-3D23-72WC04	23		72		138
C20-3D23.5-74WC04	23.5		74		139
C20-3D24-75WC04	24		75		139
C20-3D24.5-77WC04	24.5		77		142
C20-3D25-78WC05	25		78		142	WC__050308	M3x8	T10

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C25-3D14-45WC03	14	25	45	56	107	WC__030208	M2.5×5	T8
C25-3D14.5-47WC03	14.5		47		109
C25-3D15-48WC03	15		48		110
C25-3D15.5-50WC03	15.5		50		112
C25-3D16-51WC03	16		51		113
C25-3D16.5-53WC03	16.5		53		127
C25-3D17-54WC03	17		54		128
C25-3D17.5-56WC03	17.5	25	56	56	130	WC__030208	M2.5×6	T8
C25-3D18-57WC03	18		57		131
C25-3D18.5-59WC03	18.5		59		133
C25-3D19-60WC03	19		60		134
C25-3D19.5-62WC03	19.5		62		136
C25-3D20-63WC03	20		63		137
C25-3D20.5-65WC03	20.5		65		139
C25-3D21-66WC04	21	25	66	60	140	WC__040208	M2.5x7D	T8
C25-3D21.5-68WC04	21.5		68		142
C25-3D22-69WC04	22		69		146
C25-3D22.5-71WC04	22.5		71		148
C25-3D23-72WC04	23		72		149
C25-3D23.5-74WC04	23.5		74		151
C25-3D24-75WC04	24		75		152
C25-3D24.5-77WC04	24.5		77		163
C25-3D25-78WC05	25		78		163	WC__050308	M3x8	T10
C32-3D25.5-80WC05	25.5	32	80	60	165
C32-3D26-81WC05	26		81		165
C32-3D26.5-83WC05	26.5		83		167
C32-3D27-84WC05	27		84		168
C32-3D27.5-86WC05	27.5		86		169
C32-3D28-87WC05	28		87		171
C32-3D28.5-89WC05	28.5		89		172
C32-3D29-91WC05	29		91		173
C32-3D29.5-93WC05	29.5		93		174
C32-3D30-94WC05	30		94		180
C32-3D30.5-96WC05	30.5		96		182
C32-3D31-97WC06	31	32	97	60	183	WC__06T308	M3.5×9	T15
C32-3D31.5-99WC06	31.5		99		184
C32-3D32-100WC06	32		100
C32-3D325-102WC06	32.5		102

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C32-3D33-103WC06	33	32	103	60	185	WC__06T308	M3.5×9	T15
C32-3D33.5-105WC06	33.5		105		186
C32-3D34-106WC06	34		106		190
C32-3D34.5-108WC06	34.5		108		191
C32-3D35-109WC06	35		109		192
C32-3D35.5-111WC06	35.5		111		193
C32-3D36-112WC06	36		112		197
C32-3D36.5-114WC06	36.5		114		198
C32-3D37-116WC06	37		116		200
C32-3D37.5-118WC06	37.5		118		201
C32-3D38-119WC06	38		119		202
C32-3D38.5-121WC06	38.5		121		204
C32-3D39-122WC06	39		122		205
C32-3D39.5-124WC06	39.5		124		206
C40-3D40-125WC06	40	40	125	70	221
C40-3D41-128WC06	41		128		224
C40-3D42-131WC08	42		131		227	WC__080412	M4x10	T15
C40-3D43-134WC08	43		134		230
C40-3D44-137WC08	44		137		233
C40-3D45-140WC08	45		140		236
C40-3D46-143WC08	46		143		239
C40-3D47-146WC08	47		146		242
C40-3D48-149WC08	48		149		245
C40-3D49-152WC08	49		152		248
C40-3D50-155WC08	50	40	155	70	251
C40-3D51-158WC08	51		158		254
C40-3D52-161WC08	52		161		257
C40-3D53-164WC08	53		164		260
C40-3D54-167WC08	54		167		263
C40-3D55-170WC08	55		170		266
C40-3D56-176WC08	56		176		276
C40-3D57-179WC08	57		179		279
C40-3D58-182WC08	58		182		282
C40-3D59-185WC08	59		185		285

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C40-3D55-170WC06	55	40	170	70	266	WC__06T308	M3.5×9	T15
C40-3D56-176WC06	56		176		276
C40-3D57-179WC06	57		179		279
C40-3D58-182WC06	58		182		282
C40-3D59-185WC06	59		185		285
C40-3D60-188WC06	60		188		288
C40-3D61-193WC06	61		193		293
C40-3D62-196WC06	62		196		296
C40-3D63-199WC06	63		199		299
C40-3D64-202WC06	64		202		302
C40-3D65-205WC06	65		205		305
C40-3D66-208WC06	66		208		308
C40-3D67-211WC06	67		211		311
C40-3D68-214WC06	68		214		314
C40-3D69-217WC06	69		217		317
C40-3D70-220WC06	70		220		320
C40-3D71-223WC06	71		223		323
C40-3D72-226WC06	72		226		326
C40-3D73-229WC06	73		229		329
C40-3D74-232WC06	74		232		332
C40-3D75-235WC06	75		235		335
C40-3D76-238WC06	76		238		338
C40-3D77-241WC06	77		241		341
C40-3D78-244WC06	78		244		344
C40-3D79-247WC06	79		247		347
C40-3D80-250WC06	80		250		350
