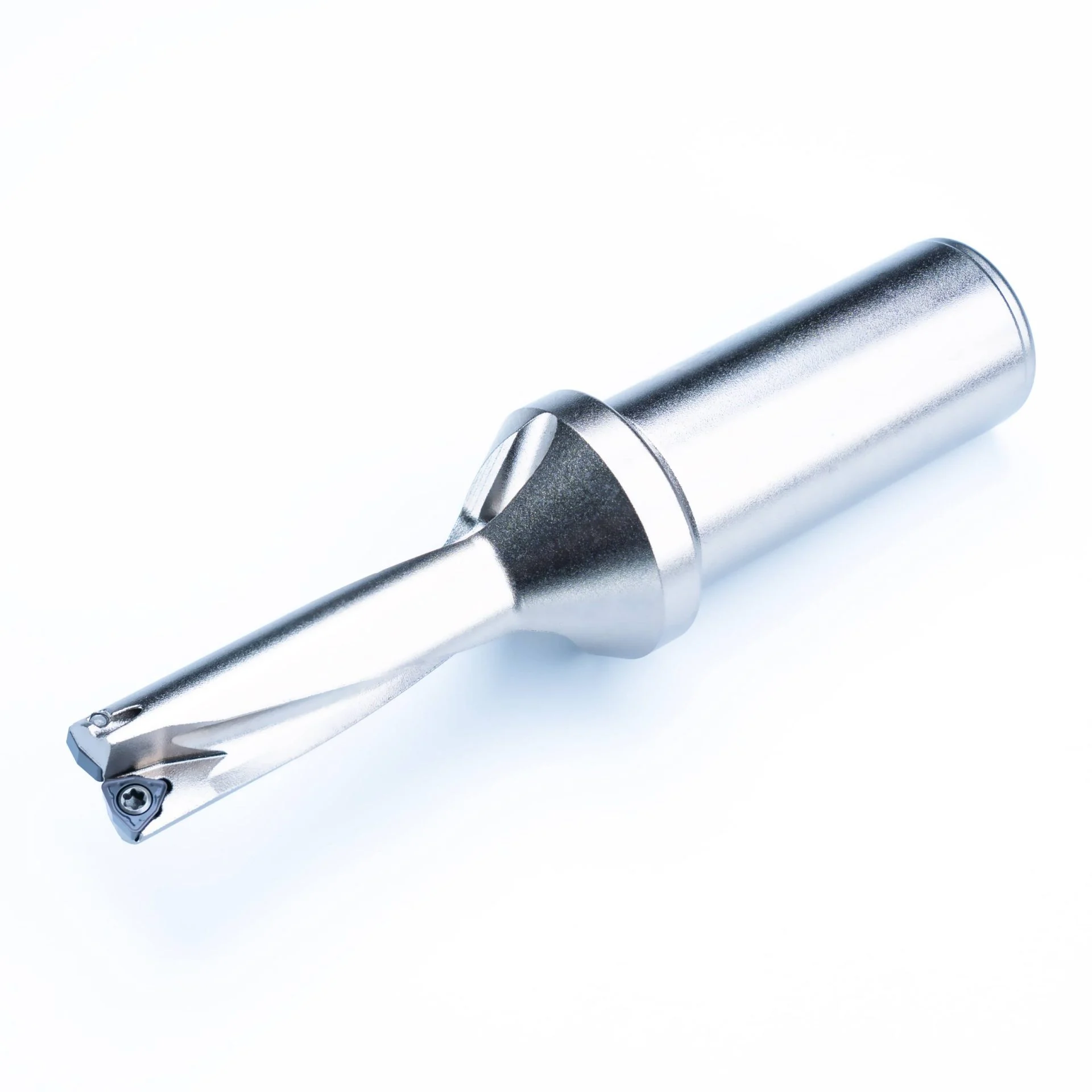

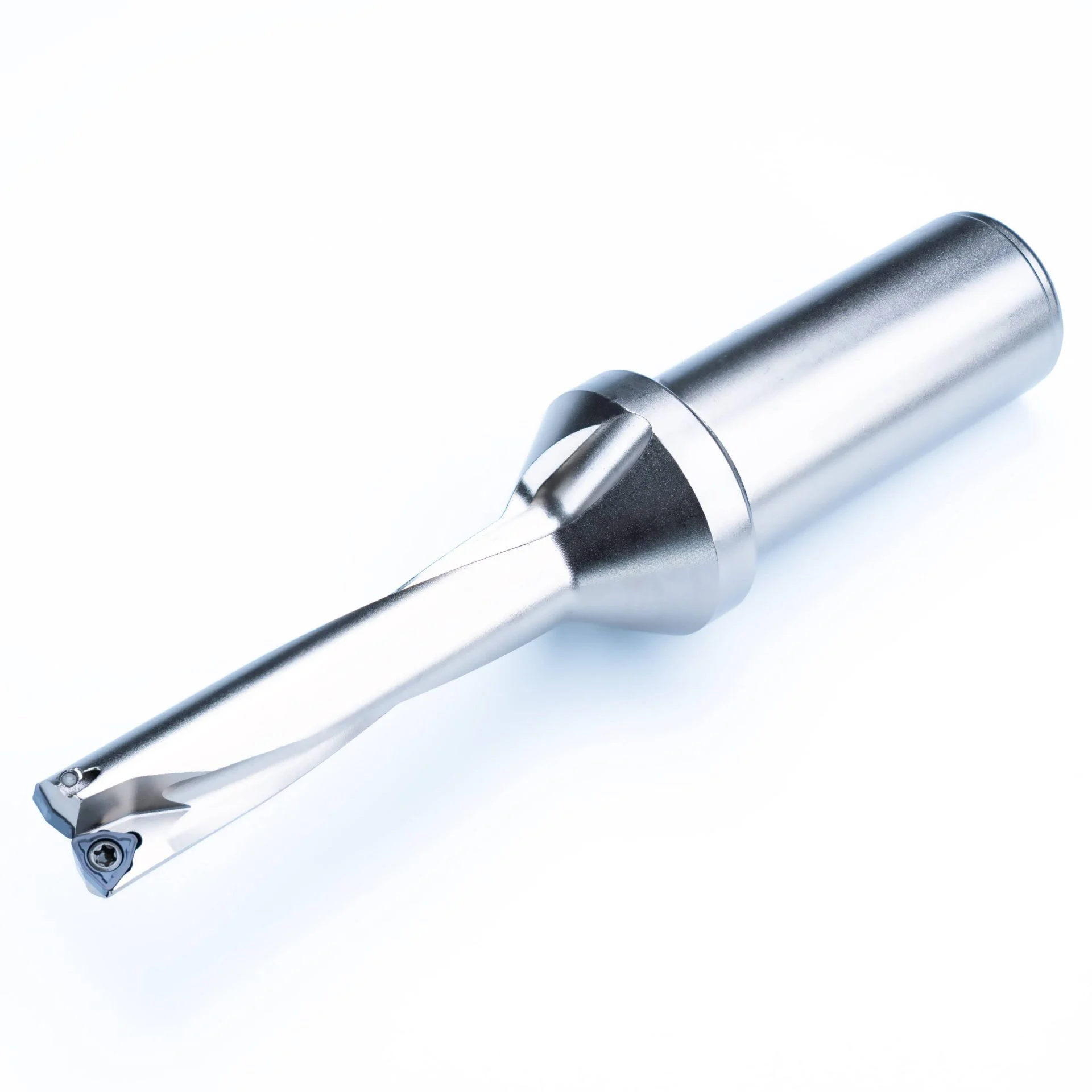

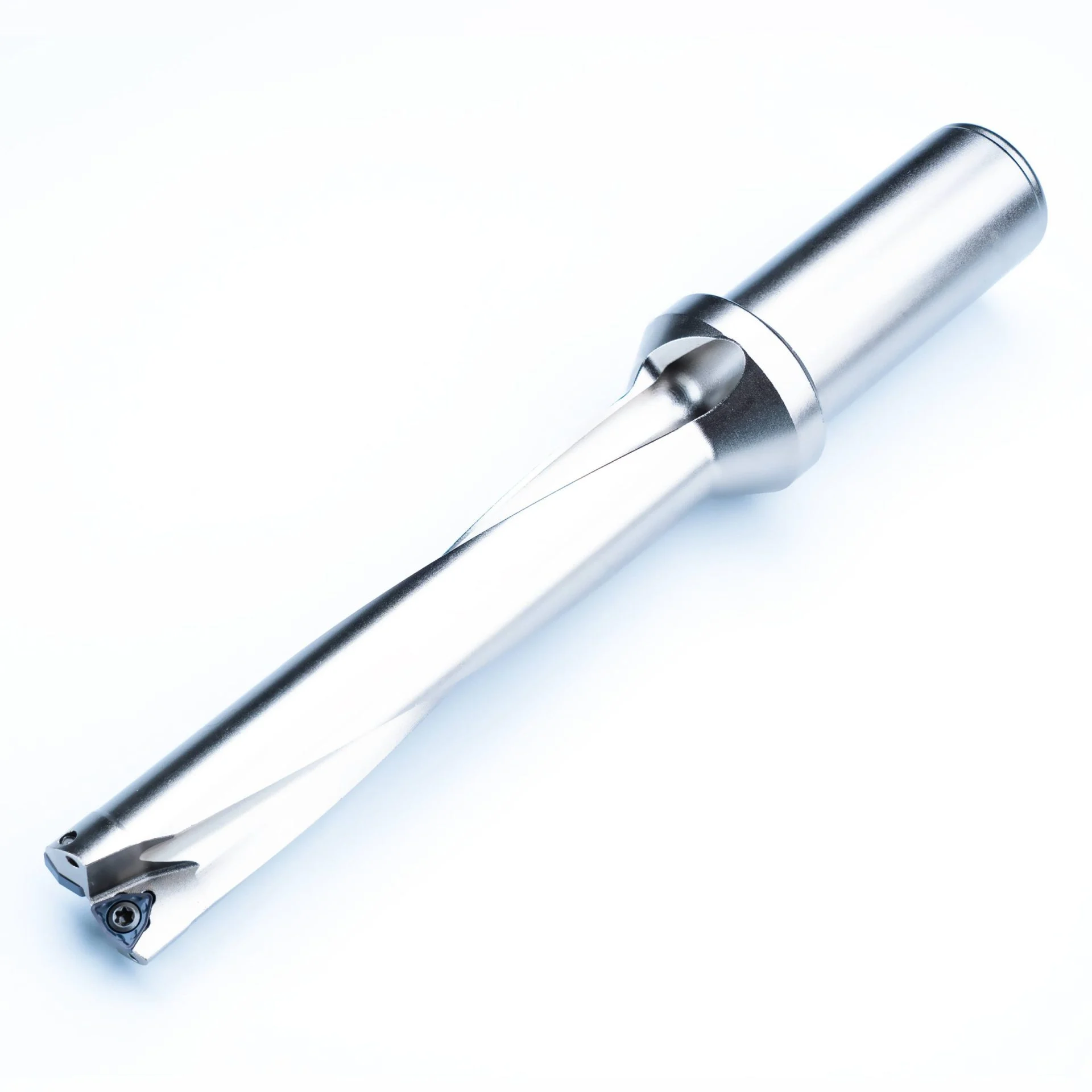

WC type U-drill 2D

Drilling depth:2xD

Material

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C20-2D14-31WC03	14	20	31	50	101	WC__030208	M2.5×5	T8
C20-2D14.5-32WC03	14.5		32		101
C20-2D15-33WC03	15		33		102
C20-2D15.5-34WC03	15.5		34		103
C20-2D16-35WC03	16		35		103
C20-2D16.5-36WC03	16.5		36		104
C20-2D17-37WC03	17		37		104
C20-2D17.5-38WC03	17.5	20	38	50	105	WC__030208	M2.5×6	T8
C20-2D18-39WC03	18		39		105
C20-2D18.5-40WC03	18.5		40		106
C20-2D19-41WC03	19		41		106
C20-2D19.5-42WC03	19.5		42		107
C20-2D20-43WC03	20		43		108
C20-2D20.5-44WC03	20.5		44		108
C20-2D21-45WC04	21	20	45	50	109	WC__040208	M2.5x7D	T8
C20-2D21.5-46WC04	21.5		46		109
C20-2D22-47WC04	22		47		111
C20-2D22.5-48WC04	22.5		48		115
C20-2D23-49WC04	23		49		115
C20-2D23.5-50WC04	23.5		50		115
C20-2D24-51WC04	24		51		116
C20-2D24.5-52WC04	24.5		52	50	117	WC__050308	M3x7	T10
C20-2D25-53WC05	25		53	50	117	WC__050308	M3x7	T10

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C20-2D14-31WC03	14	25	31	56	108	WC__030208	M2.5×5	T8
C20-2D14.5-32WC03	14.5		32		109
C20-2D15-33WC03	15		33		110
C20-2D15.5-34WC03	15.5		34		110
C20-2D16-35WC03	16		35		111
C20-2D16.5-36WC03	16.5		36		111
C20-2D17-37WC03	17		37		113
C20-2D17.5-38WC03	17.5	25	38	56	114	WC__030208	M2.5×6	T8
C20-2D18-39WC03	18		39		115
C20-2D18.5-40WC03	18.5		40		116
C20-2D19-41WC03	19		41		116
C20-2D19.5-42WC03	19.5		42		117
C20-2D20-43WC03	20		43		117
C20-2D20.5-44WC03	20.5		44		118
C20-2D21-45WC04	21	25	45	56	119	WC__040208	M2.5x7D	T8
C20-2D21.5-46WC04	21.5		46		119
C20-2D22-47WC04	22		47		121
C20-2D22.5-48WC04	22.5		48		121
C20-2D23-49WC04	23		49		122
C20-2D23.5-50WC04	23.5		50		122
C20-2D24-51WC04	24		51		124
C20-2D24.5-52WC04	24.5		52		124
C20-2D25-53WC05	25		53		125	WC__050308	M3x7	T10
C20-2D25.5-54WC05	25.5	32	54	60	137	WC__050308	M3x8	T10
C32-2D26-55WC05	26		55		138
C32-2D26.5-56WC05	26.5		56		138
C32-2D27-57WC05	27		57		139
C32-2D27.5-58WC05	27.5		58		139
C32-2D28-59WC05	28		59		140
C32-2D28.5-60WC05	28.5		60		140
C32-2D29-62WC05	29		62		142
C32-2D29.5-63WC05	29.5		63		142
C32-2D30-64WC05	30		64		144
C32-2D30.5-65WC05	30.5		65		144
C32-2D31-66WC06	31	32	66	60	151	WC__06T308	M3.5×9	T15
C32-2D31.5-67WC06	31.5		67		151
C32-2D32-68WC06	32		68		151
C32-2D32.5-69WC06	32.5		69		152

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C32-2D33-70WC06	33	32	70	60	152	WC__06T308	M3.5×9	T15
C32-2D33.5-71WC06	33.5		71		153
C32-2D34-72WC06	34		72		156
C32-2D34.5-73WC06	34.5		73		156
C32-2D35-74WC06	35		74		157
C32-2D35.5-75WC06	35.5		75		157
C32-2D36-76WC06	36		76		161
C32-2D36.5-77WC06	36.5		77		161
C32-2D37-79WC06	37		79		163
C32-2D37.5-80WC06	37.5		80		163
C32-2D38-81WC06	38		81		165
C32-2D38.5-82WC06	38.5		82		165
C32-2D39-83WC06	39		83		168
C32-2D39.5-84WC06	39.5		84		168
C40-2D40-85WC06	40	40	85	70	181
C40-2D41-87WC06	41		87		183
C40-2D42-89WC08	42		89		185	WC__080412	M4x10	T15
C40-2D43-91WC08	43		91		187
C40-2D44-93WC08	44		93		189
C40-2D45-95WC08	45		95		191
C40-2D46-97WC08	46		97		193
C40-2D47-99WC08	47		99		195
C40-2D48-101WC08	48		101		197
C40-2D49-103WC08	49		103		199
C40-2D50-105WC08	50	40	105	70	201
C40-2D51-107WC08	51		107		203
C40-2D52-109WC08	52		109		205
C40-2D53-111WC08	53		111		207
C40-2D54-113WC08	54		113		209
C40-2D55-115WC08	55		115		211
C40-2D56-120WC08	56		120		220
C40-2D57-122WC08	57		122		222
C40-2D58-124WC08	58		124		224
C40-2D59-126WC08	59		126		226

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C40-2D55-115WC06	55	40	115	70	211	WC__06T308	M3.5×9	T15
C40-2D56-120WC06	56		120		220
C40-2D57-122WC06	57		122		222
C40-2D58-124WC06	58		124		224
C40-2D59-126WC06	59		126		226
C40-2D60-128WC06	60		128		228
C40-2D61-130WC06	61		130		232
C40-2D62-132WC06	62		132		234
C40-2D63-134WC06	63		134		236
C40-2D64-136WC06	64		136		238
C40-2D65-138WC06	65		138		240
C40-2D66-142WC06	66		142		242
C40-2D67-144WC06	67		144		244
C40-2D68-146WC06	68		146		246
C40-2D69-148WC06	69		148		248
C40-2D70-150WC06	70		150		250
C40-2D71-152WC06	71		152		252
C40-2D72-154WC06	72		154		254
C40-2D73-156WC06	73		156		256
C40-2D74-158WC06	74		158		258
C40-2D75-160WC06	75		160		260
C40-2D76-162WC06	76		162		262
C40-2D77-164WC06	77		164		264
C40-2D78-166WC06	78		166		266
C40-2D79-168WC06	79		168		268
C40-2D80-170WC06	80		170		270
