WNMG080412-TM TC75

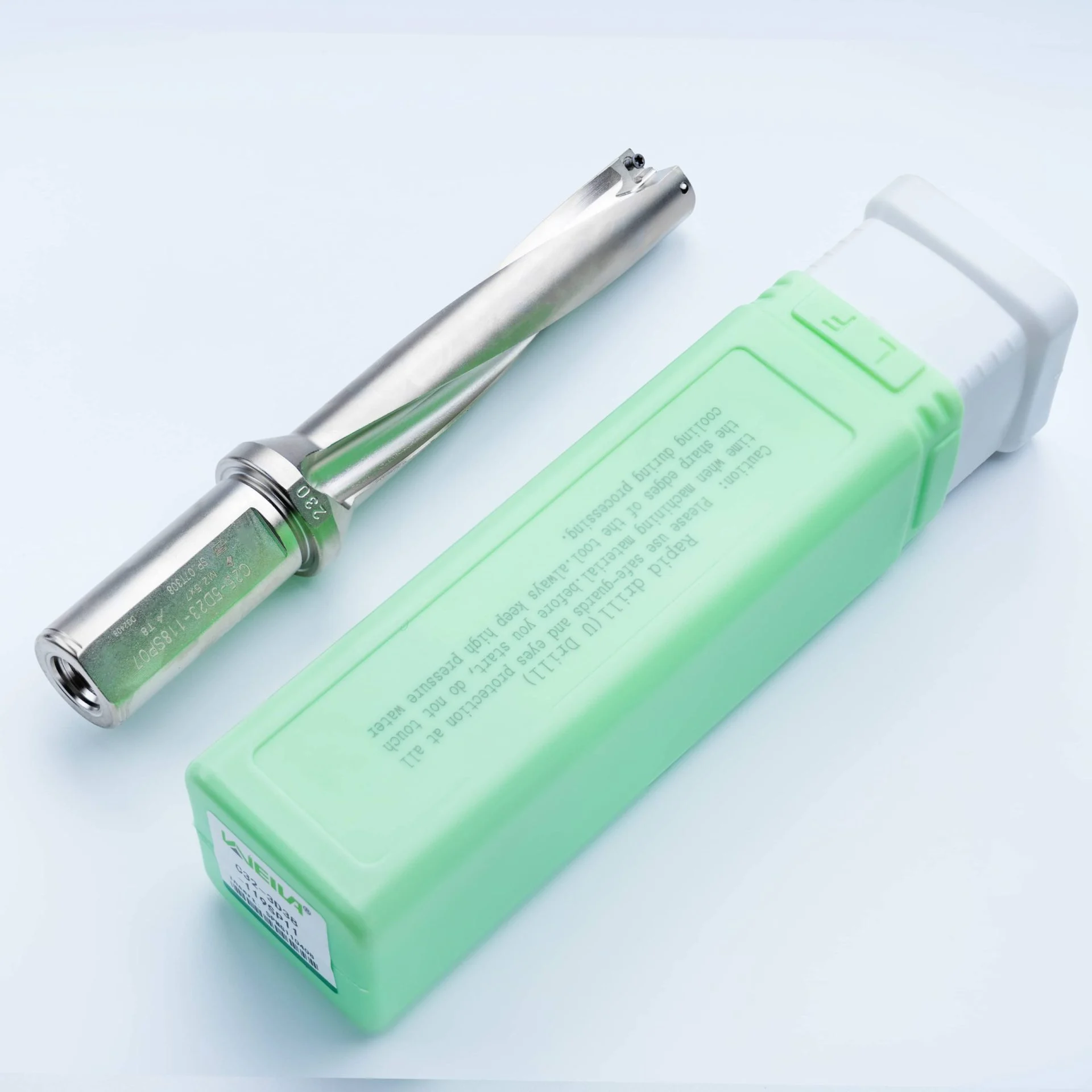

(Drilling depth):5xD
| Specification and model | D | d | L1 | Ls | L | Insert model | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|
| C20-5D12.5-66SP05 | 12.5 | 20 | 66 | 50 | 136 | SP__050204 | M2x5 | T6 |
| C20-5D13-68SP05 | 13 | 68 | 138 | |||||
| C20-5D13.5-71SP05 | 13.5 | 71 | 140 | |||||
| C20-5D14-73SP05 | 14 | 73 | 142 | |||||
| C20-5D14.5-76SP05 | 14.5 | 76 | 144 | |||||
| C20-5D15-78SP05 | 15 | 78 | 146 | |||||
| C20-5D15.5-81SP06 | 15.5 | 81 | 149 | SP__060204 | M2.2×5 | T6 | ||
| C20-5D16-83SP06 | 16 | 83 | 151 | |||||
| C20-5D16.5-86SP06 | 16.5 | 86 | 154 | |||||
| C20-5D17-88SP06 | 17 | 88 | 156 | |||||
| C20-5D17.5-91SP06 | 17.5 | 91 | 159 | |||||
| C20-5D18-93SP06 | 18 | 93 | 160 | |||||
| C20-5D18.5-96SP06 | 18.5 | 96 | 163 | |||||
| C20-5D19-98SP06 | 19 | 98 | 164 | |||||
| C20-5D19.5-101SP06 | 19.5 | 101 | 167 | |||||
| C20-5D20-103SP06 | 20 | 103 | 169 | |||||
| C20-5D20.5-106SP06 | 20.5 | 106 | 172 | |||||
| C20-5D21-108SP06 | 21 | 108 | 174 | |||||
| C20-5D21.5-111SP06 | 21.5 | 111 | 177 | |||||
| C20-5D22-113SP07 | 22 | 113 | 181 | SP__07T308 | M2.5×7 | T8 | ||
| C20-5D22.5-116SP07 | 22.5 | 116 | 183 | |||||
| C20-5D23-118SP07 | 23 | 118 | 185 | |||||
| C20-5D23.5-121SP07 | 23.5 | 121 | 187 | |||||
| C20-5D24-123SP07 | 24 | 123 | 189 | |||||
| C20-5D24.5-126SP07 | 24.5 | 126 | 192 | |||||
| C20-5D25-128SP07 | 25 | 128 | 194 |
| Specification and model | D | d | L1 | Ls | L | Insert model | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|
| C25-5D12.5-66SP05 | 12.5 | 25 | 66 | 56 | 144 | SP__050204 | M2x5 | T6 |
| C25-5D13-68SP05 | 13 | 68 | 146 | |||||
| C25-5D13.5-71SP05 | 13.5 | 71 | 149 | |||||
| C25-5D14-73SP05 | 14 | 73 | 150 | |||||
| C25-5D14.5-76SP05 | 14.5 | 76 | 153 | |||||
| C25-5D15-78SP05 | 15 | 78 | 155 | |||||
| C25-5D15.5-81SP06 | 15.5 | 81 | 157 | SP__060204 | M2.2×5 | T6 | ||
| C25-5D16-83SP06 | 16 | 83 | 159 | |||||
| C25-5D16.5-86SP06 | 16.5 | 86 | 161 | |||||
| C25-5D17-88SP06 | 17 | 88 | 164 | |||||
| C25-5D17.5-91SP06 | 17.5 | 91 | 167 | |||||
| C25-5D18-939SP06 | 18 | 93 | 168 | |||||
| C25-5D18.5-96SP06 | 18.5 | 96 | 171 | |||||
| C25-5D19-98SP06 | 19 | 98 | 173 | |||||
| C25-5D19.5-101SP06 | 19.5 | 101 | 175 | |||||
| C25-5D20-103SP06 | 20 | 103 | 177 | |||||
| C25-5D20.5-106SP06 | 20.5 | 106 | 179 | |||||
| C25-5D21-108SP06 | 21 | 108 | 181 | |||||
| C25-5D21.5-111SP06 | 21.5 | 111 | 184 | |||||
| C25-5D22-113SP07 | 22 | 25 | 113 | 56 | 186 | SP__07T308 | M2.5×7 | T8 |
| C25-5D22.5-116SP07 | 22.5 | 116 | 189 | |||||
| C25-5D23-118SP07 | 23 | 118 | 190 | |||||
| C25-5D23.5-121SP07 | 23.5 | 121 | 193 | |||||
| C25-5D24-123SP07 | 24 | 123 | 194 | |||||
| C25-5D24.5-126SP07 | 24.5 | 126 | 197 | |||||
| C25-5D25-128SP07 | 25 | 128 | 199 | |||||
| C32-5D25.5-131SP07 | 25.5 | 32 | 131 | 60 | 214 | |||
| C32-5D26-133SP07 | 26 | 133 | 215 | |||||
| C32-5D26.5-136SP07 | 26.5 | 136 | 218 | |||||
| C32-5D27-138SP07 | 27 | 138 | 219 | |||||
| C32-5D27.5-141SP07 | 27.5 | 141 | 222 | |||||
| C32-5D28-143SP09 | 28 | 32 | 143 | 60 | 224 | SP__090408 | M3.5×9 | T15 |
| C32-5D28.5-146SP09 | 28.5 | 146 | 226 | |||||
| C32-5D29-149SP09 | 29 | 149 | 229 | |||||
| C32-5D29.5-152SP09 | 29.5 | 152 | 231 | |||||
| C32-5D30-154SP09 | 30 | 154 | 233 | |||||
| C32-5D30.5-157SP09 | 30.5 | 157 | 236 | |||||
| C32-5D31-159SP09 | 31 | 159 | 244 | |||||
| C32-5D31.5-162SP09 | 31.5 | 162 | 246 | |||||
| C32-5D32-164SP09 | 32 | 32 | 164 | 60 | 248 | SP__090408 | M3.5×9 | T15 |
| C32-5D32.5-167SP09 | 32.5 | 167 | 250 | |||||
| C32-5D33-169SP09 | 33 | 169 | 251 | |||||
| C32-5D33.5-172SP09 | 33.5 | 172 | 253 |
| Specification and model | D | d | L1 | Ls | L | Insert model | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|
| C32-5D34-174SP11 | 34 | 32 | 174 | 60 | 257 | SP__110408 | M4x10 | T15 |
| C32-5D34.5-177SP11 | 34.5 | 177 | 260 | |||||
| C32-5D35-179SP11 | 35 | 179 | 261 | |||||
| C32-5D35.5-182SP11 | 35.5 | 182 | 263 | |||||
| C32-5D36-184SP11 | 36 | 184 | 270 | |||||
| C32-5D36.5-187SP11 | 36.5 | 187 | 272 | |||||
| C32-5D37-190SP11 | 37 | 190 | 274 | |||||
| C32-5D37.5-193SP11 | 37.5 | 193 | 276 | |||||
| C32-5D38-195SP11 | 38 | 195 | 279 | |||||
| C32-5D38.5-198SP11 | 38.5 | 198 | 282 | |||||
| C32-5D39-200SP11 | 39 | 200 | 284 | |||||
| C32-5D39.5-203SP11 | 39.5 | 203 | 287 | |||||
| C40-5D40-205SP11 | 40 | 40 | 205 | 70 | 301 | |||
| C40-5D41-210SP11 | 41 | 210 | 306 | |||||
| C40-5D42-215SP14 | 42 | 215 | 311 | SP__140512 | M5x11 | T20 | ||
| C40-5D43-220SP14 | 43 | 220 | 316 | |||||
| C40-5D44-225SP14 | 44 | 225 | 321 | |||||
| C40-5D45-230SP14 | 45 | 230 | 326 | |||||
| C40-5D46-235SP14 | 46 | 235 | 331 | |||||
| C40-5D47-240SP14 | 47 | 240 | 336 | |||||
| C40-5D48-245SP14 | 48 | 245 | 341 | |||||
| C40-5D49-250SP14 | 49 | 250 | 346 | |||||
| C40-5D50-255SP14 | 50 | 255 | 351 | |||||
| C40-5D51-260SP07 | 51 | 40 | 260 | 70 | 356 | SP__07T308 | M2.5×7 | T8 |
| C40-5D52-265SP07 | 52 | 265 | 361 | |||||
| C40-5D53-270SP07 | 53 | 270 | 366 | |||||
| C40-5D54-275SP07 | 54 | 275 | 371 | |||||
| C40-5D55-280SP07 | 55 | 280 | 376 | |||||
| C40-5D56-285SP09 | 56 | 285 | 388 | SP__090408 | M3.5×8 | T15 | ||
| C40-5D57-290SP09 | 57 | 290 | 393 | |||||
| C40-5D58-295SP09 | 58 | 295 | 398 | |||||
| C40-5D59-300SP09 | 59 | 300 | 403 | |||||
| C40-5D60-305SP09 | 60 | 305 | 408 |
