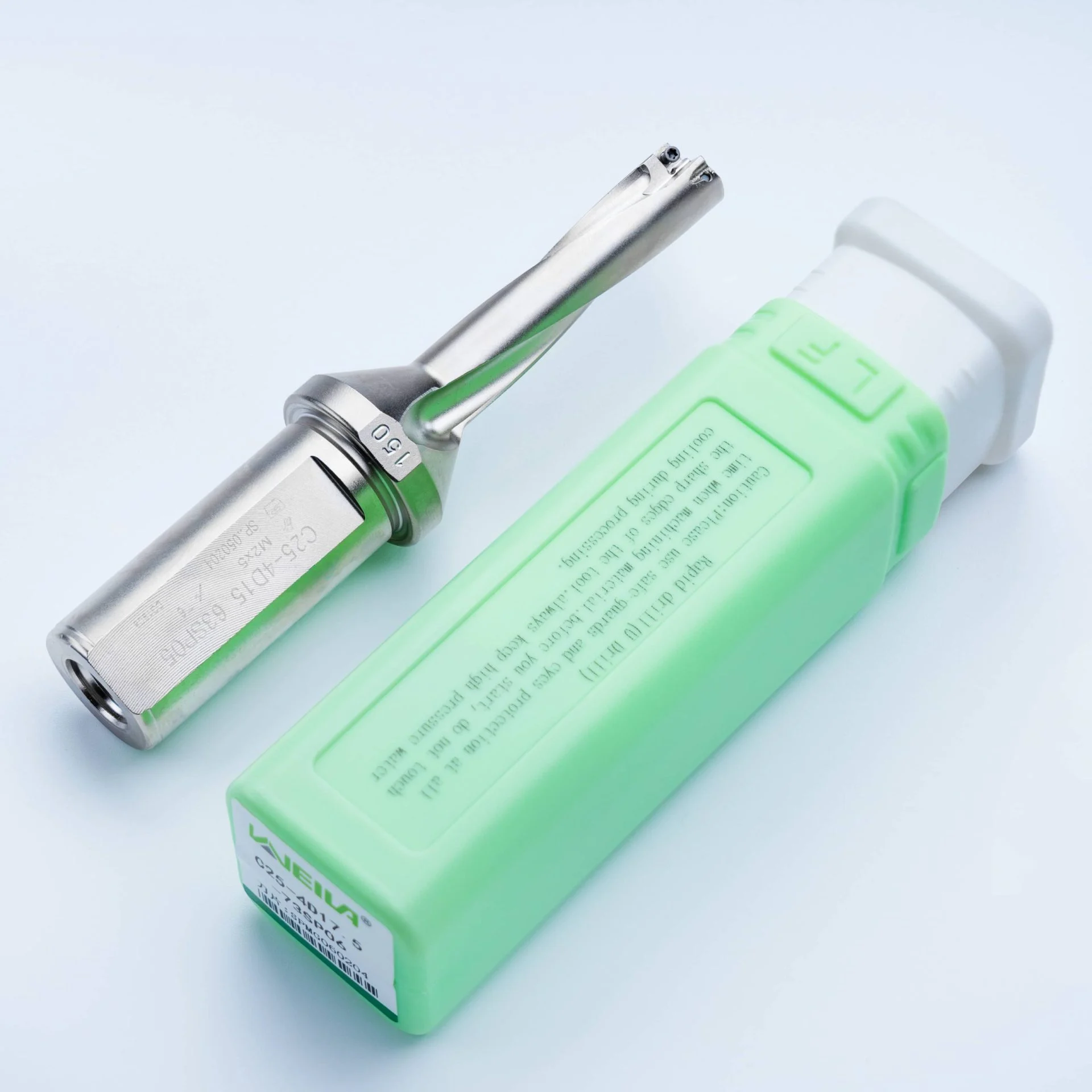

SP type U-drill 4D

(Drilling depth):3xD

Material

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C20-4D12.5-53SP05	12.5	20	53	50	123	SP__050204	M2x5	T6
C20-4D13-55SP05	13		55		125
C20-4D13.5-57SP05	13.5		57		126
C20-4D14-59SP05	14		59		128
C20-4D14.5-61SP05	14.5		61		129
C20-4D15-63SP05	15		63		131
C20-4D15.5-65SP06	15.5		65		133	SP__060204	M2.2×5	T6
C20-4D16-67SP06	16		67		135
C20-4D16.5-69SP06	16.5		69		137
C20-4D17-71SP06	17		71		139
C20-4D17.5-73SP06	17.5		73		141
C20-4D18-75SP06	18		75		142
C20-4D18.5-77SP06	18.5		77		144
C20-4D19-79SP06	19		79		145
C20-4D19.5-81SP06	19.5		81		147
C20-4D20-83SP06	20		83		149
C20-4D20.5-85SP06	20.5		85		151
C20-4D21-87SP06	21		87		153
C20-4D21.5-89SP06	21.5		89		155
C20-4D22-91SP07	22		91		159	SP__07T308	M2.5×7	T8
C20-4D22.5-93SP07	22.5		93		160
C20-4D23-95SP07	23		95		162
C20-4D23.5-97SP07	23.5		97		163
C20-4D24-99SP07	24		99		165
C20-4D24.5-101SP07	24.5		101		167
C20-4D25-103SP07	25		103		169

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C25-4D12.5-53SP05	12.5	25	53	56	132	SP__050204	M2x5	T6
C25-4D13-55SP05	13		55		133
C25-4D13.5-57SP05	13.5		57		135
C25-4D14-59SP05	14		59		136
C25-4D14.5-61SP05	14.5		61		138
C25-4D15-63SP05	15		63		140
C25-4D15.5-65SP06	15.5		65		141	SP__060204	M2.2×5	T6
C25-4D16-67SP06	16		67		143
C25-4D16.5-69SP06	16.5		69		145
C25-4D17-71SP06	17		71		147
C25-4D17.5-73SP06	17.5		73		149
C25-4D18-75SP06	18		75		150
C25-4D18.5-77SP06	18.5		77		152
C25-4D19-79SP06	19		79		154
C25-4D19.5-81SP06	19.5		81		155
C25-4D20-83SP06	20		83		157
C25-4D20.5-85SP06	20.5		85		158
C25-4D21-87SP06	21		87		160
C25-4D21.5-89SP06	21.5		89		162
C25-4D22-91SP07	22		91		164	SP__07T308	M2.5×7	T8
C25-4D22.5-93SP07	22.5		93		166
C25-4D23-95SP07	23		95		167
C25-4D23.5-97SP07	23.5		97		169
C25-4D24-99SP07	24		99		170
C25-4D24.5-101SP07	24.5		101		172
C25-4D25-103SP07	25		103		174
C32-4D25.5-105SP07	25.5	32	105	60	188
C32-4D26-107SP07	26		107		189
C32-4D26.5-109SP07	26.5		109		191
C32-4D27-111SP07	27		111		192
C32-4D27.5-113SP07	27.5		113		194
C32-4D28-115SP09	28		115		196	SP__090408	M3.5×8	T15
C32-4D28.5-117SP09	28.5		117		197
C32-4D29-120SP09	29		120		200
C32-4D29.5-122SP09	29.5		122		202
C32-4D30-124SP09	30		124		203
C32-4D30.5-126SP09	30.5		126		205
C32-4D31-128SP09	31		128		213
C32-4D31.5-130SP09	31.5		130		214

Specification and model	D	d	L1	Ls	L	Insert model	Screw	Wrench
C32-4D32-132SP09	32	32	132	60	216	SP__090408	M3.5×9	T15
C32-4D32.5-134SP09	32.5		134		217
C32-4D33-136SP09	33		136		218
C32-4D33.5-138SP09	33.5		138		219
C32-4D34-140P11	34	32	140	60	227	SP__110408	M4x10	T15
C32-4D34.5-142SP11	34.5		142		234
C32-4D35-144SP11	35		144		235
C32-4D35.5-146SP11	35.5		146		237
C32-4D36-148SP11	36		148		238
C32-4D36.5-150SP11	36.5		150		241
C32-4D37-152SP11	37		153		243
C32-4D37.5-155SP11	37.5		155		245
C32-4D38-157SP11	38		157		247
C32-4D38.5-159SP11	38.5		159		261
C32-4D39-161SP11	39		161		265
C32-4D39.5-163SP11	39.5		163		269	SP__140512	M5x11	T20
C40-4D40-165SP11	40	40	165	70	273
C40-4D41-169SP11	41		169		277
C40-4D42-173SP14	42		173		281
C40-4D43-177SP14	43		177		285
C40-4D44-181SP14	44		181		289
C40-4D45-185SP14	45		185		283
C40-4D46-189SP14	46		189		297
C40-4D47-193SP14	47		193		301
C40-4D48-197SP14	48		197		305	SP__07T308	M2.5×7	T8
C40-4D49-201SP14	49		201		309
C40-4D50-205SP14	50		205		313
C40-4D51-209SP07	51	40	209	70	317
C40-4D52-213SP07	52		213		321
C40-4D53-217SP07	53		217		332	SP__090408	M3.5×8	T15
C40-4D54-221SP07	54		221		336
C40-4D55-225SP07	55		225		340
C40-4D56-232SP09	56		232		344
C40-4D57-236SP09	57		236		348
C40-4D58-240SP09	58		240		354
C40-4D59-244SP09	59		244		358
C40-4D60-248SP09	60		248		362
C40-4D61-254SP09	61		254		366
C40-4D62-258SP09	62		258		370
C40-4D63-262SP09	63		262		374
C40-4D64-266SP09	64		266		378	SP110408	M4x10	T15
C40-4D65-270SP09	65		270		382
C40-4D66-274SP09	66		274		386
C40-4D67-278SP11	67		278		390
C40-4D68-282SP11	68		282		394
C40-4D69-286SP11	69		286		398
C40-4D70-290SP11	70		290		402
C40-4D71-294SP11	71		294		406
C40-4D72-298SP11	72		298		410
C40-4D73-302SP11	73		302		414
C40-4D74-306SP11	74		306		418
C40-4D75-310SP11	75		310		422
C40-4D76-314SP11	76		314		426
C40-4D77-318SP11	77		318		430
C40-4D78-322SP11	78		322		344
C40-4D79-326SP11	79		326		347
C40-4D80-330SP11	80		330		350
