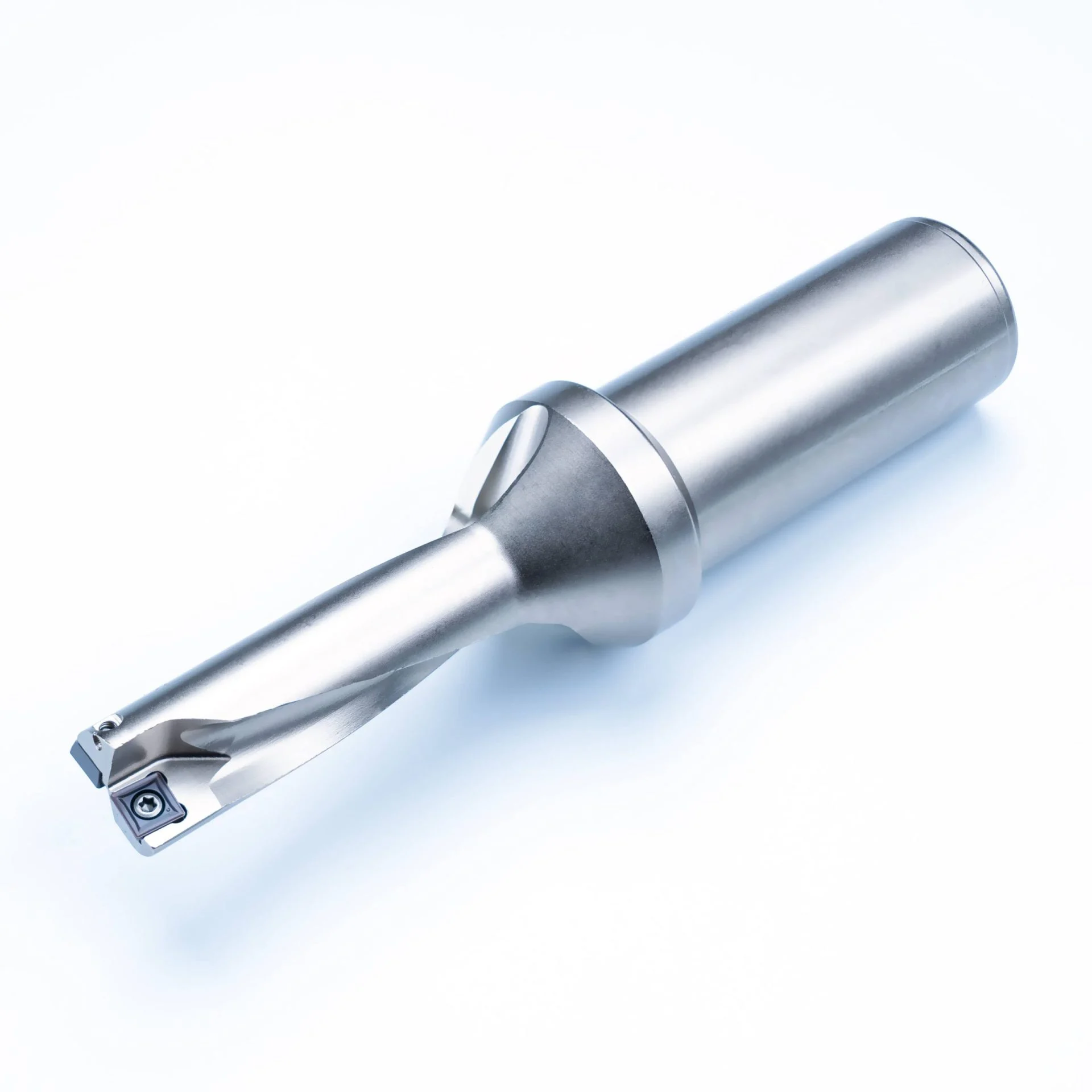

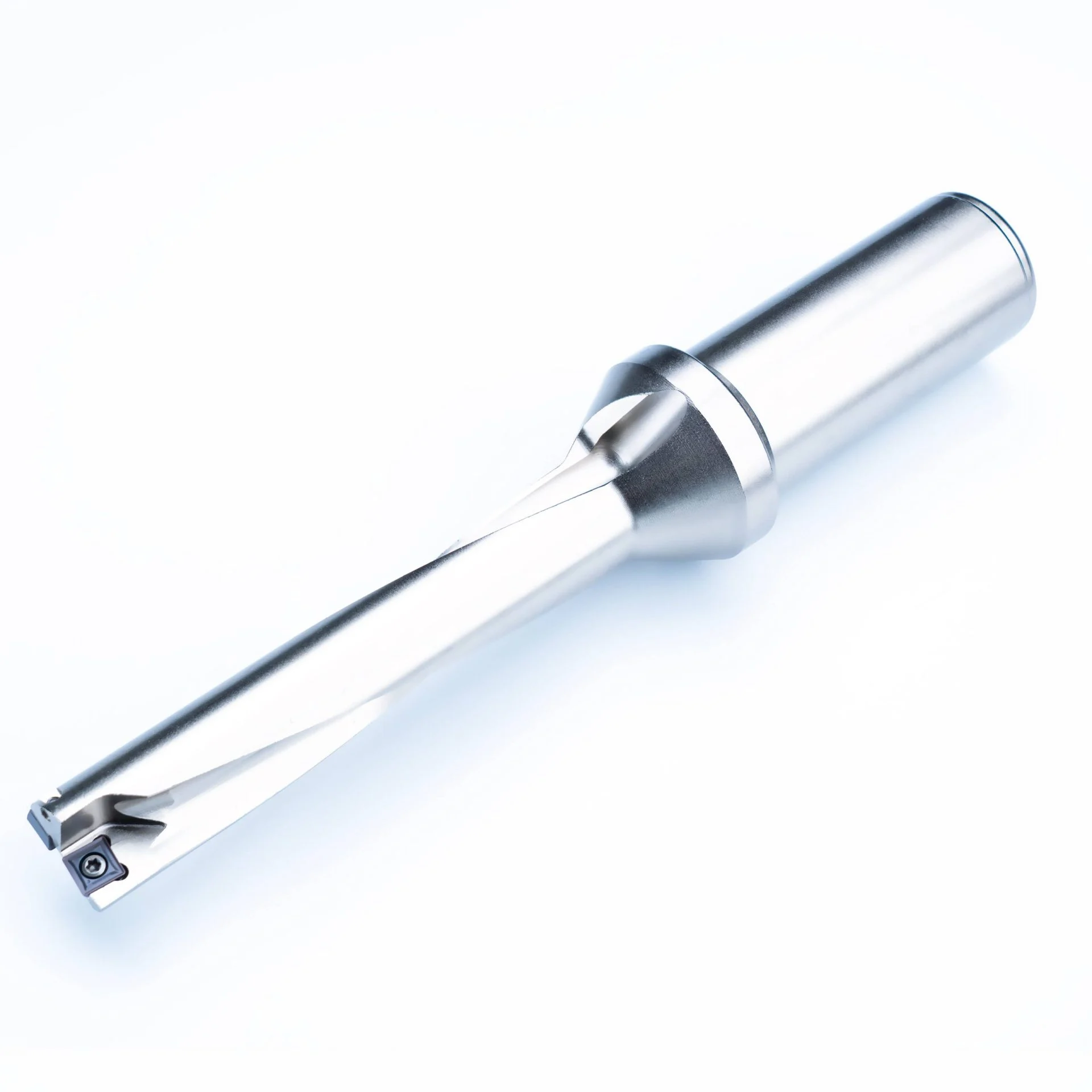

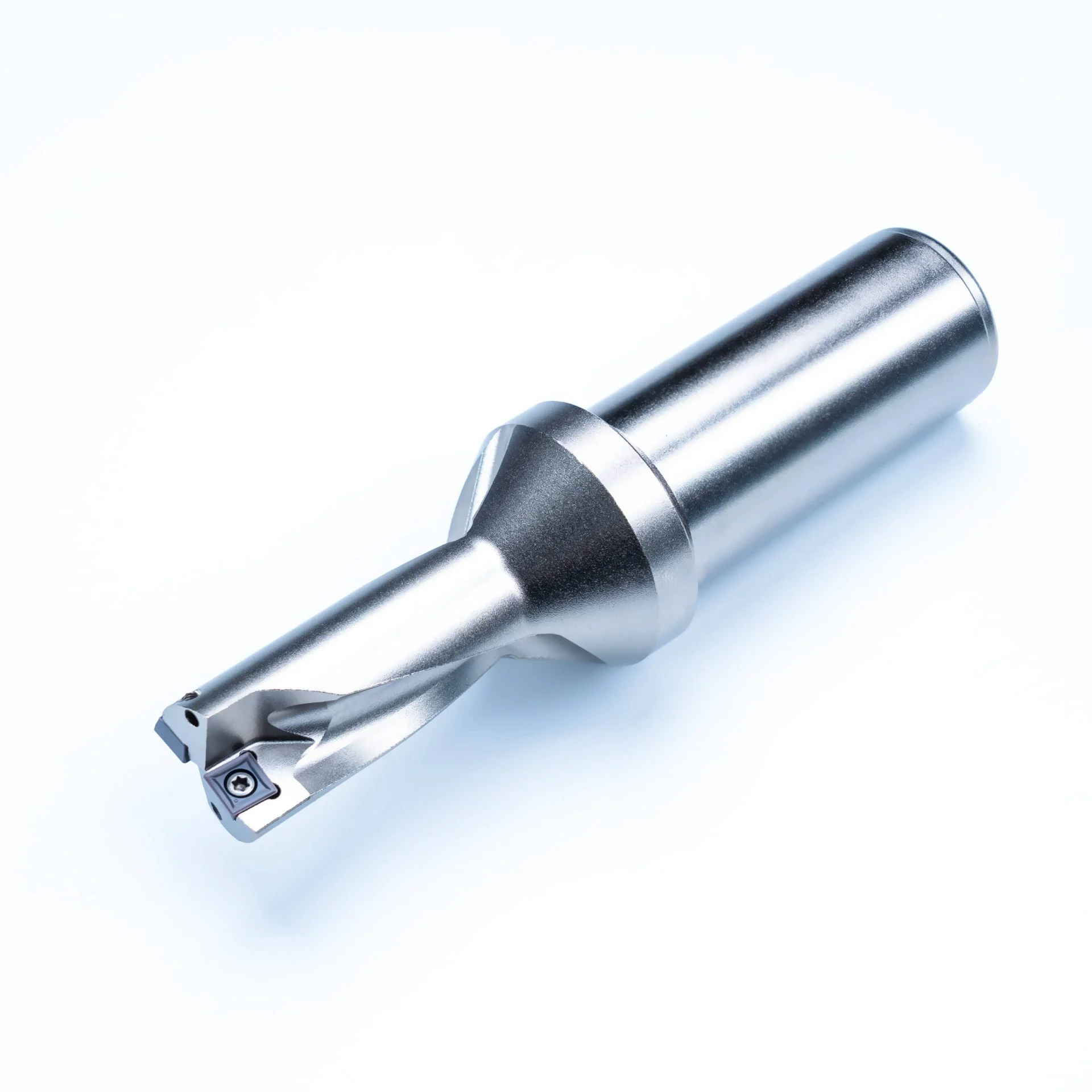

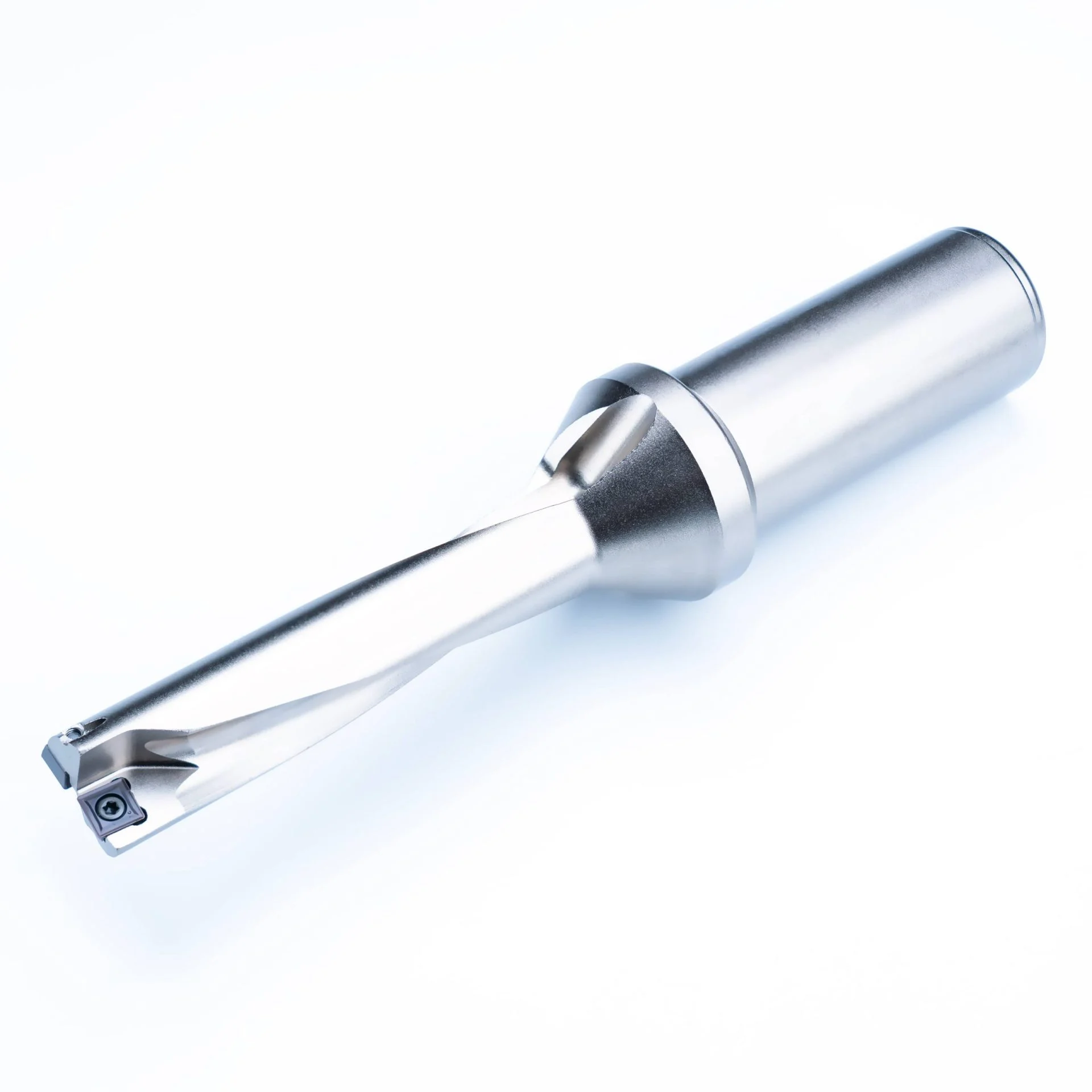

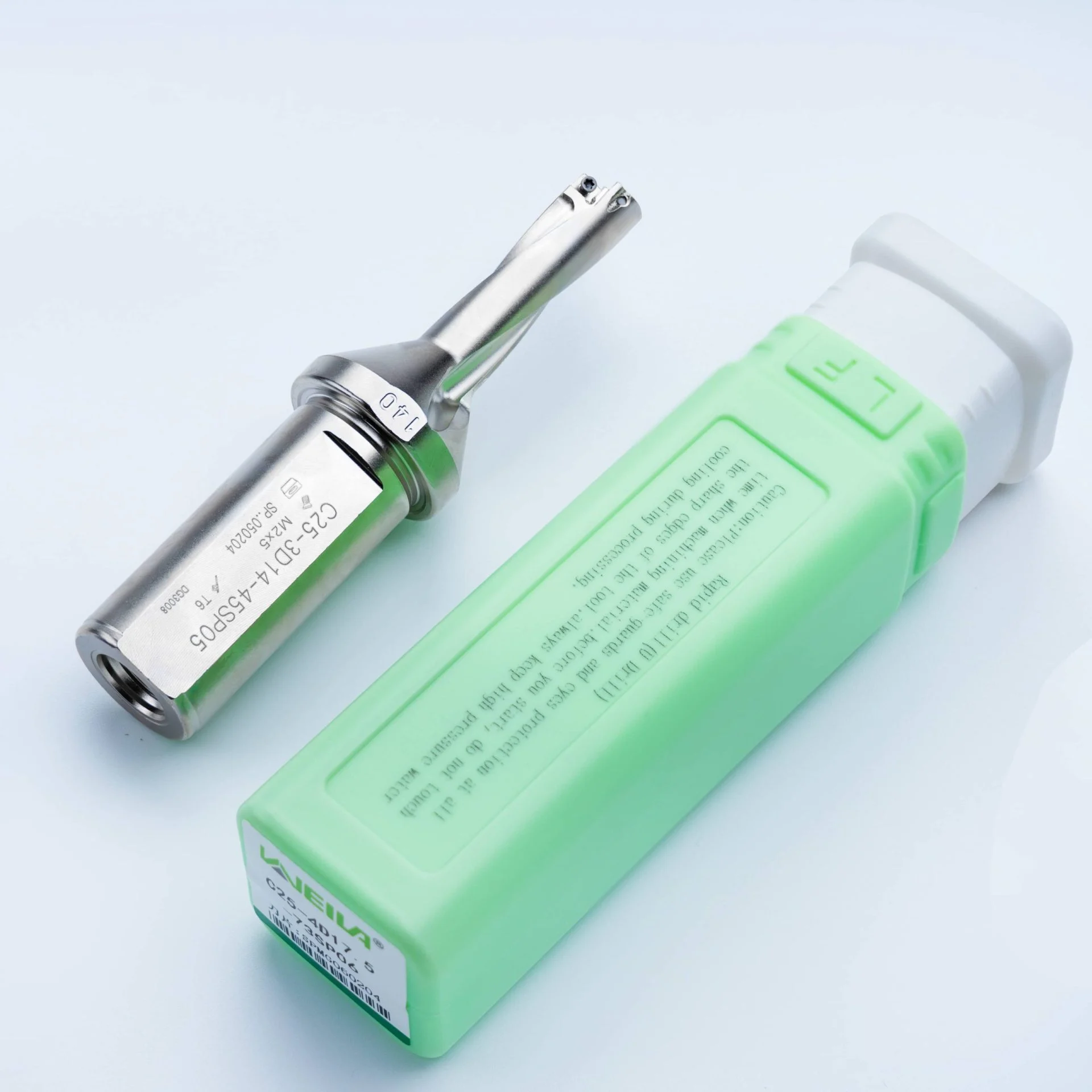

SP type U-drill 3D

(Drilling depth):3xD

Category:

Description

Specification and model D d L1 Ls L Insert model Screw Wrench
C20-3D12.5-41SP05 12.5 20 41 50 111 SP050204 M2x5 T6
C20-3D13-42SP05 13 42 112
C20-3D13.5-44SP05 13.5 44 113
C20-3D14-45SP05 14 45 114
C20-3D14.5-47SP05 14.5 47 115
C20-3D15-48SP05 15 48 116
C20-3D15.5-50SP06 15.5 20 50 50 118 SP060204 M2.2×5 T8
C20-3D16-51SP06 16 51 119
C20-3D16.5-53SP06 16.5 53 122
C20-3D17-54SP06 17 54 122
C20-3D17.5-56SP06 17.5 20 56 50 124
C20-3D18-57SP06 18 57 124
C20-3D18.5-59SP06 18.5 59 126
C20-3D19-60SP06 19 60 126
C20-3D19.5-62SP06 19.5 62 128
C20-3D20-63SP06 20 63 129
C20-3D20.5-65SP06 20.5 65 131
C20-3D21-66SP06 21 66 132
C20-3D21.5-68SP06 21.5 68 134
C20-3D22-69SP07 22 20 69 50 137 SP07T308 M2.5×7 T8
C20-3D22.5-71SP07 22.5 71 138
C20-3D23-72SP07 23 72 139
C20-3D23.5-74SP07 23.5 74 140
C20-3D24-75SP07 24 75 141
C20-3D24.5-77SP07 24.5 77 143
C20-3D25-78SP07 25 78 144



Specification and model D d L1 Ls L Insert model Screw Wrench
C25-3D12.5-41SP05 12.5 25 41 56 120 SP050204 M2x5 T6
C25-3D13-42SP05 13 42 120
C25-3D13.5-44SP05 13.5 44 122
C25-3D14-45SP05 14 45 122
C25-3D14.5-47SP05 14.5 47 124
C25-3D15-48SP05 15 48 125
C25-3D15.5-50SP06 15.5 25 50 56 126 SP060204 M2.2×5 T6
C25-3D16-51SP06 16 51 127
C25-3D16.5-53SP06 16.5 53 129
C25-3D17-54SP06 17 54 130
C25-3D17.5-56SP06 17.5 56 132
C25-3D18-57SP06 18 57 132
C25-3D18.5-59SP06 18.5 59 134
C25-3D19-60SP06 19 60 135
C25-3D19.5-62SP06 19.5 62 136
C25-3D20-63SP06 20 63 137
C25-3D20.5-65SP06 20.5 65 138
C25-3D21-66SP06 21 66 139
C25-3D21.5-68SP06 21.5 68 141
C25-3D22-69SP07 22 25 69 56 142 SP07T308 M2.5×7 T8
C25-3D22.5-71SP07 22.5 71 143
C25-3D23-72SP07 23 72 144
C25-3D23.5-74SP07 23.5 74 146
C25-3D24-75SP07 24 75 146
C25-3D24.5-77SP07 24.5 77 148
C25-3D25-78SP07 25 78 149
C32-3D25.5-80SP07 25.5 32 80 60 163
C32-3D26-81SP07 26 81 163
C32-3D26.5-83SP07 26.5 83 165
C32-3D27-84SP07 27 84 166
C32-3D27.5-86SP07 27.5 86 167
C32-3D28-87SP09 28 32 87 60 168 SP090408 M3.5×9 T15
C32-3D28.5-89SP09 28.5 89 169
C32-3D29-91SP09 29 91 171
C32-3D29.5-93SP09 29.5 93 173
C32-3D30-94SP09 30 94 173
C32-3D30.5-96SP09 30.5 96 175
C32-3D31-97SP09 31 97 182
C32-3D31.5-99SP09 31.5 99 183



Specification and model D d L1 Ls L Insert model Screw Wrench
C32-3D32-100SP09 32 32 100 60 184 SP__090408 M3.5×9 T15
C32-3D32.5-102SP09 32.5 102 185
C32-3D33-103SP09 33 103 185
C32-3D33.5-105SP09 33.5 105 186
C32-3D34-106SP11 34 32 106 60 189 SP__110408 M4x10 T15
C32-3D34.5-108SP11 34.5 108 191
C32-3D35-109SP11 35 109 191
C32-3D35.5-111SP11 35.5 111 192
C32-3D36-112SP11 36 112 198
C32-3D36.5-114SP11 36.5 114 199
C32-3D37-116SP11 37 116 200
C32-3D37.5-118SP11 37.5 118 201
C32-3D38-119SP11 38 119 203
C32-3D38.5-121SP11 38.5 121 205
C32-3D39-122SP11 39 1 206
C32-3D39.5-124SP11 39.5 2 208
C40-3D40-125SP11 40 40 12 70 221
C40-3D41-128SP11 41 131 224
C40-3D42-131SP14 42 4 227 SP__140512 M5x11 T20
C40-3D43-134SP14 43 13 230
C40-3D44-137SP14 44 7 233
C40-3D45-140SP14 45 140 236
C40-3D46-143SP14 46 143 239
C40-3D47-146SP14 47 146 242
C40-3D48-149SP14 48 149 245
C40-3D49-152SP14 49 15 248
C40-3D50-155SP14 50 155 251
C40-3D51-158SP07 51 40 158 70 254 SP__07T308 M2.5×7 T8
C40-3D52-161SP07 52 161 257
C40-3D53-164SP07 53 164 260
C40-3D54-167SP07 54 167 263
C40-3D55-170SP07 55 170 266
C40-3D56-173SP09 56 176 276 SP__090408 M3.5×9 T15
C40-3D57-179SP09 57 179 279
C40-3D58-182SP09 58 182 282
C40-3D59-185SP09 59 185 285
C40-3D60-188SP09 60 188 288
C40-3D61-193SP09 61 193 293
C40-3D62-196SP09 62 196 296
C40-3D63-199SP09 63 199 299
C40-3D64-202SP09 64 202 302
C40-3D65-205SP09 65 205 305
C40-3D66-208SP09 66 208 308
C40-3D67-211SP11 67 211 311 SP110408 M4x10 T15
C40-3D68-214SP11 68 214 314
C40-3D69-217SP11 69 217 317
C40-3D70-220SP11 70 220 320
C40-3D71-223SP11 71 223 323
C40-3D72-226SP11 72 226 326
C40-3D73-229SP11 73 229 329
C40-3D74-232SP11 74 232 332
C40-3D75-235SP11 75 235 335
C40-3D76-238SP11 76 238 338
C40-3D77-241SP11 77 241 341
C40-3D78-244SP11 78 244 344
C40-3D79-247SP11 79 247 347
C40-3D80-250SP11 80 250 350
